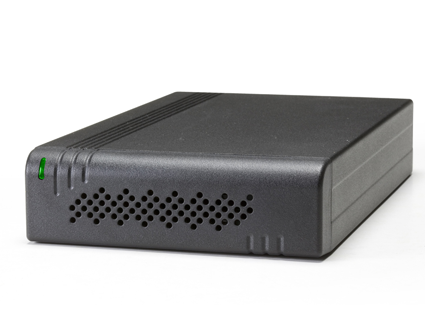

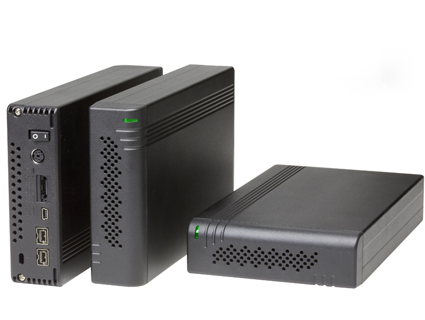

SATALite 3.5" USB/eSATA/1394b HDD Enclosure

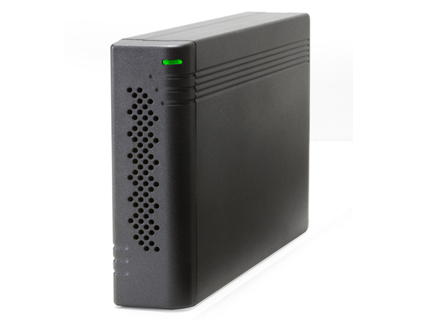

The SATALite 3.5" DB-M12O HDD Enclosure offers a solution for cost-sensitive users wish to use a light and stylish external HDD enclosure for a notebook or home computer. It stands vertically and allows maximum heat dissipation by exposing most of the enclosure surface. The durable and thermally efficient aluminum housing provides even greater heat dissipation, eliminating the need for an internal fan (which may cause excess noise).

The DB-M12O extends connection flexibility with a combination of eSATA, USB2.0, and two FireWire 800 ports; the included bundled 6-pin to 9-pin FireWire cable further enhances flexibility for users without a FireWire 800 port on their host computer.

The easy-to-carry plus simple-to-install compacted Enclosure guarantees to have snappy plug-n-play connection and immediate access for all your valuable data (which would require an external power supply).

The HDD spin down function ensures efficient operation. To reduce power consumption, the hard disk inside the Enclosure will spin down during sleep mode and will automatically spin up when the host system is waken.

  • Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs

  • Supports Hi-Speed USB data transfer speed up to 480 Mbps

  • Supports eSATA data transfer speed up to 1500 Mbps

  • Supports IEEE 1394 data transfer speed up to 800 Mbps

  • Combines enclosure and FireWire repeater functionality

  • Enhances work space with a stylish housing design

  • Eliminates need for power supply removal with a built-in power switch

  • Reduces power consumption with HDD spin down support

  • Extends connection flexibility to host with plug-n-play via High-Speed USB 2.0, eSATA and IEEE 1934b ports

  • Interface eSATA /USB 2.0 / FireWire 800
    HDD Support 3.5" HDD with SATA interface (support of SATA II and 1.0/1.a)

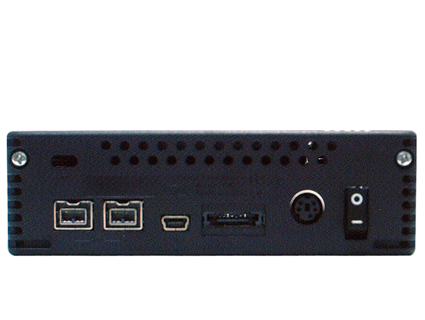

    Connector USB mini-B receptacle x 1
    9-Pin 1394b connectors x 2
    eSATA connector x 1
    Data Transfer Rate USB 2.0: 480Mbps,
    FireWire 800: 800Mbps,
    eSATA: 1500Mbps
    LED Power On / Access / Power Off
    Material Cabinet: Aluminum
    Front and rear panel with drive tray: Plastic
    Dimension 205 x 123.5 x 37.6 MM
    Weight (without HDD) 415 G
    Certification CE, FCC
    Power Supply 5V/2A, 12V/2A dual output, 100~240V AC Adapter
    Package Contents HDD Enclosure
    USB Cable
    FireWire 800 Cable
    External Power Supply
    Fastening Screws
    Quick Start Guide


    File Name Sized Ver. Date Downloads
    e_SATALite_UM.pdf 1.58 MB EN 2006/11/10
    g_SATALite_UM.pdf 1.34 MB DE 2006/11/10
    f_SATALite_UM.pdf 1.45 MB FR 2006/11/10


    File Name Sized Ver. Date Downloads
    SATALite_datasheet.pdf 0.32 MB EN 2007/4/24
    DBM12O_TC.pdf 0.39 MB TC 2012/7/10
