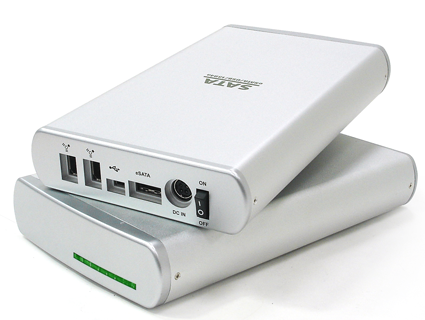

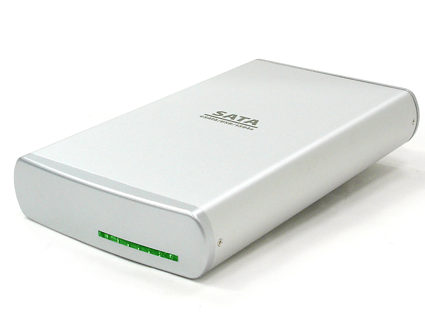

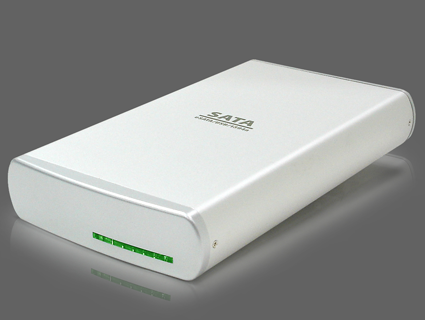

DataTale SATAPro

TA-M12O

The SATAPro 3.5-inch HDD Enclosure offers a solution for users that wish to use an external SATA solution for a notebook or home computer. The SATAPro 3.5-inch HDD Enclolsure extends connection flexibility with one eSATA, one USB2.0 port and two FireWire 400 ports; thus, reducing device footprint while delivering exceptional performance and reliability for both Mac and PC users.

The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature, and impact protection while keeping your high RPM SATA hard drive safe from damages and drops.

The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature. Its load-bearing support structure keeps your high RPM SATA hard drive safe from force and pressure damages. The patented Stable Mounting System, with its reverse-C mounts and shock-absorbing suspension system, protects the HDD against impact damage and accidental drops.

The HDD spin down function ensures efficient operation. To reduce power consumption, the hard disk inside the Enclosure will spin down during sleep mode and will automatically spin up when the host system is waken.

The easy-to-carry plus simple-to-install compacted Enclosure guarantees to have quick plug-n-play connection and immediate access for all your valuable data.

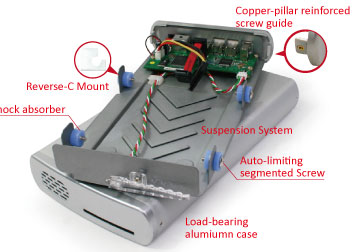

Patented secure mounting system


Having problems upgrading your SATAPro along with the host computer? Try our FireWire 400-to-800 Adapter!

  • Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs

  • Supports Hi-Speed USB data transfer speed up to 480 Mbps

  • Supports eSATA data transfer speed up to 3000 Mbps

  • Supports IEEE 1394a data transfer speed up to 400 Mbps

  • Supports hot-plug and effortless drive swapping

  • Combines enclosure and FireWire repeater functionality

  • Sustains HDD stability, and keep HDD safe from damages and drops with the patented Stable Mounting System (shock-absorbing suspension system, "reverse-C" mounts, and anti-shock chamber)

  • Protects housing with copper pillar reinforced screw guides

  • Provides efficient heat dissipation and maintains optimum HDD operation temperature with rugged aluminum housing

  • Prevents HDD damage due to over-tightening with auto-limiting segmented screws

  • Eliminates power supply removal with built-in power switch

  • Reduces power consumption with HDD spin up/down support

  • Extends connection flexibility to host with plug-n-play via High-Speed USB 2.0, eSATA and IEEE 1934a ports

    • Bus Interface eSATA / USB2.0 / IEEE 1394a
    Data Speeds eSATA : up to 1500 Mbps
    USB 2.0 Port: up to 480Mbps
    IEEE 1394a (FireWire 400) port: up to 400 Mbps

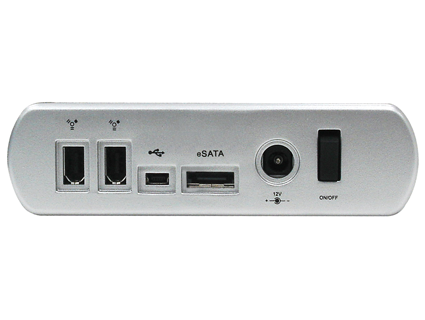

    Connector One USB mini-B receptacle
    Two 6-Pin 1394a connectors
    One eSATA connector (shielded SATA II connector)
    HDD Support 3.5" HDD with SATA interface (support of SATA II and 1.0/1.a)
    LED Power / Access
    Power Supply 12V/2A and 5V/2A dual output, 90~264V AC/DC adapter
    Dimension (L x W x H) 226 x 133 x 36 MM
    Weight (without HDD) 550 G
    Package Contents HDD Enclosure
    USB Cable
    eSATA Cable
    FireWire 400 Cable
    External Power Supply
    Fastening Screws
    Quick Start Guide
    FireWire Adapter

    Firmware

    File Name Sized Ver. Date Downloads
    TAM12O_FW_V1.20_update.zip 20.19MB WIN 2011/2/24

    Manual/Guide

    File Name Sized Ver. Date Downloads
    SATAPro_35_UM.pdf 0.41 MB EN 2007/8/8
    SATAPro_35_UM_g.pdf 0.52 MB DE 2007/8/8
    SATAPro_35_UM_f.pdf 0.41 MB FR 2007/8/8
    TAM12O_QSG_TC.pdf 0.37 MB TC 2011/10/26

    DataSheet

    File Name Sized Ver. Date Downloads
    SATAPro_datasheet.pdf 0.28 MB EN 2009/2/2
    SATAPRO_35_DM_TC.pdf 0.24 MB TC 2011/10/26
