This new DataTale 1U Rack Mount comes with triple interfaces - 1394b, USB 2.0, and eSATA. It is designed to meet any data storage expansion needs for rack systems while allowing optimized performance and user-friendly management capabilities. The 1U Rack Mount System is engineered with a set of S.M.A.R.T (Self-Monitoring, Analysis, Reporting and Technology) System to provide immediate system status via visual, audio, and technical methods. Multicolored LED indicators and Sound Alarm keep users informed of the progress of each operation or any urgent matters.
‧ Supports current SATA II compliant HDDs
‧ Connects flexibly via USB 2.0, eSATA, and FireWire 800 ports
‧ Provides JBOD (Non RAID), RAID 0 (Striping), RAID 1 (Mirroring), Span (Large), Clone, RAID 5, RAID 1+0, and optional HotSpare for effective storage management
‧ Supports automatic rebuild under RAID 1+HotSpare, Clone+HotSpare, and RAID 5+HotSpare.
‧ Configures RAID modes easily using RAID MASTER, no IT expertise required
‧ Monitors system status via LED indicators, Buzzer-sounded Alert Alarm, or RAID MASTER
‧ Provides optimal heat dissipation via aluminum housing and nickel-plated metal HDD Drive Trays
‧ Maximizes airflow with 3 silent fans and simplified mechanical designs

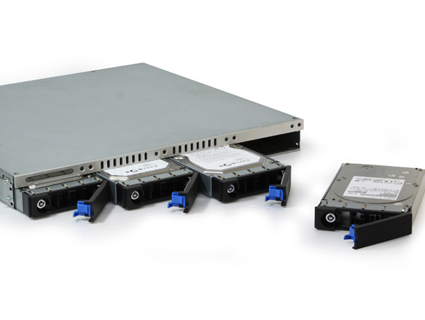

‧ Supports effortless HDD hot-plug and hot-swap
‧ Supports both online and offline rebuild
‧ Includes accessible yet convenient rack Unit, along with optional Guide Rail Set(s)

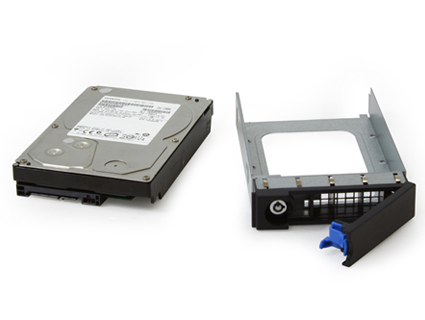

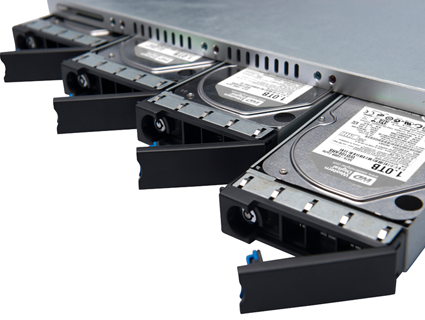

‧ Features lockable yet removable HDD Drive Trays for security and simple system access
HDD support | 3.5" SATA HDD *Identical HDD recommended with same manufacturer, capacity and RPM |
RAID mode | JBOD (Non RAID), RAID 0 (Striping), RAID 1 (Mirroring), Span, Clone, RAID 5, RAID 10 (1+0), and optional HotSpare |

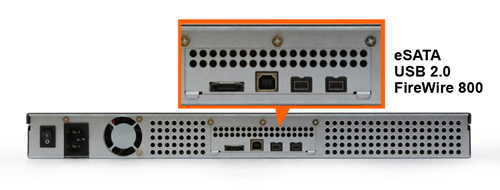

Connectors | USB 2.0 x 1; eSATA x 1; 1394b x 2 |

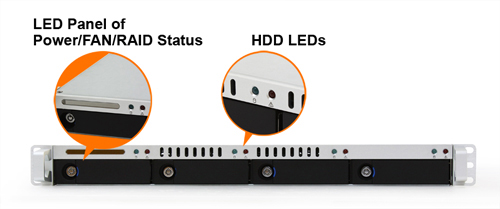

LED Indicator | Power / Connection / Health / Access / Rebuild / RAID / Fan Alerts |
Power Supply | Input: AC 100~240V; Output: DC +12V/16A; +5V/16A |
FAN | Quantity: 3; Dimension: 40 x 40 x 20 mm Speed: 7200 R.P.M +-10%; Noise: 36.3 dB(A) max |
Dimension | 430 (L) x 425 (W) x 44.5* (H) mm 1U Standard |
Weight (without HDD) | 6.3 KGS |

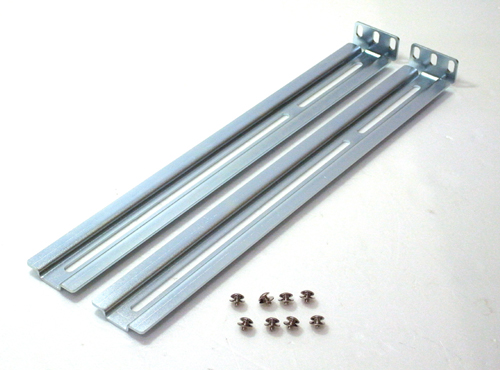

Optional Rail set | 374 mm (L) x 43 mm (W) x 24.7 mm (H) |
Package Contents | 1U Rack Mount USB Cable eSATA Cable FireWire 800 Cable Power Cord 2 Tray Lock Keys HDD Screws 2 Handle Brackets 2 Bracket Nuts RAID MASTER CD Quick Start Guide |
