DataWhale 2-Bay RAID System


The entire DataWhale 2-Bay RAID family meets users demands for RAID storage management, Striping (RAID 0), Spanning, Mirroring (RAID 1) and JBOD (Non RAID) applications.

The RS-M2BF comes fully equipped with both USB 2.0 and FireWire 800 connection options. This will provide convenience for any user, especially professionals who may need to utilize both PC and Mac on a daily basis. By enabling usage of the USB 2.0 ad FireWire 800 dual-interface features, flexibility and speed in productivity are highly increased.

Using the DataWhale 2-Bay RAID System is as simple and familiar as using a single bay external enclosure. Simply install the HDDs, set the chosen RAID mode via a Mode Switch, connect the cables, and power on for a massive storage System on your desktop. The need for software and GUI installation is eliminated. Onboard LED indicators keep you apprised of the system, connection, and HDD status, while the user-friendly HDD tray design makes HDD hot swapping effortless.

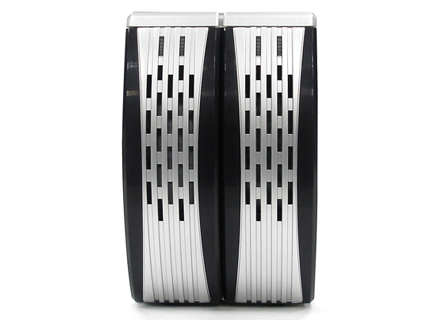

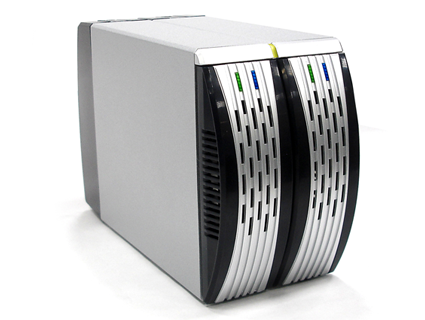

The DataWhale 2-Bay RAID System features an outstanding mechanical design and rugged aluminum elegance. The high quality, silent-running fan exhausts hot air away from the internal HDDs, dramatically enhancing internal air flow to cool the high RPM SATA HDDs.

  • Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs*

  • *The "Desktop" editions of WD hard disks are not recommended. See our Troubleshooting

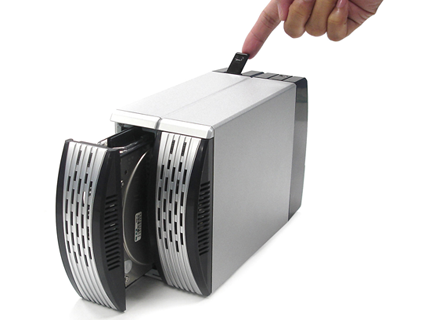

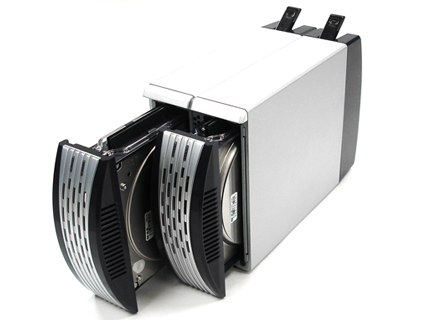

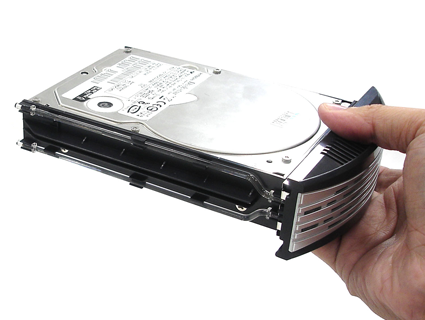

  • Enables HDD hot-plug, effortless HDD hot swapping, and simplified HDD installation via user friendly HDD tray design

  • Ensures data integrity with redundant backup capability

  • Eliminates potential downtime, repair costs, and lost sales due to disk failure

  • Configures RAID modes easily, no IT expertise required

  • Simplifies RAID management, no software installation required

  • Meets user?���?demands for RAID storage management using Striping (RAID 0), Spanning, Mirroring (RAID 1), and JBOD (Non RAID) applications

  • Achieves the fastest performance via Striping (RAID 0) mode

  • Supports automatic rebuild under Mirroring (RAID 1) mode

  • Extends connection flexibility to host with plug-n-play via High-Speed USB 2.0 and 1394b ports

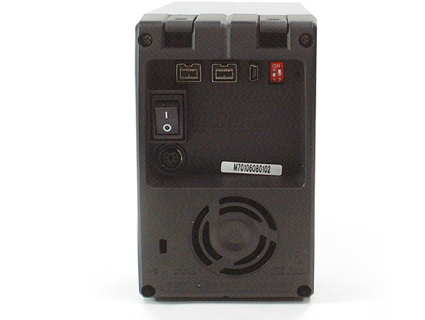

  • Connector USB 2.0 x 1
    IEEE 1394b x2
    HDD Support 3.5" SATA HDD
    (Identical HDD recommended - same manufacturer, capacity and RPM)
    RAID Mode Striping (RAID 0), Spanning, Mirroring (RAID 1), JBOD (Non RAID)
    Data Transfer Speed USB 2.0: up to 480Mb/sec,
    1394b: up to 800Mb/sec
    System Materia Aluminum case with plastic front and rear panels
    LED Power On / Power Off / Access / Rebuild / Error
    Power Supply Input: AC 90-264V; Output: DC +12V/2A, +5V/2A
    Peak current: +12V/4A, +5V/3A
    FAN 40 x 40 x 10 MM
    Dimension 220 x 85 x 130 MM
    Weight (without HDD) 920 G
    Certification CE, FCC
    Package Contents RAID Unit
    USB Cable
    FireWire 800 Cable
    External Power Supply
    Fastening Screws
    Quick Start Guide
