DataTale SATAPro

TA-S12T

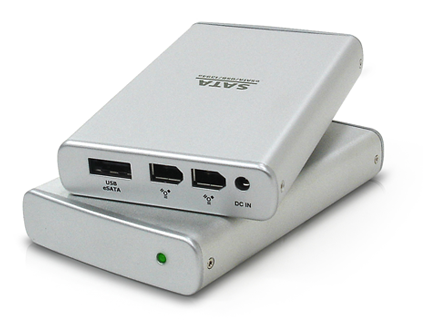

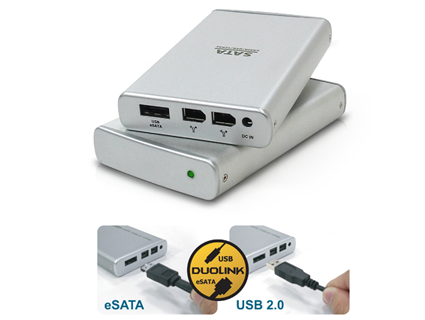

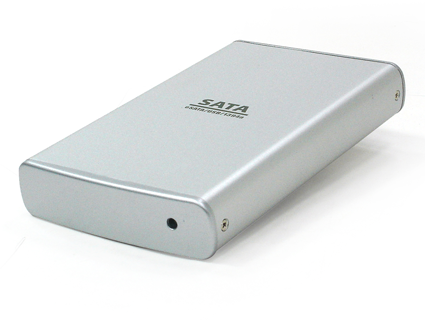

The SATAPro 2.5-inch HDD Enclosure offers a solution for users that wish to use an external SATA solution for a notebook or home computer. The SATAPro 2.5-inch HDD Enclosure extends connection flexibility with a combination port of eSATA and USB2.0 port and 2 FireWire 400 ports. The DuoLink eSATA/USB 2-in-1 IO connector enables SATA HDD usage with any notebook or desktop system by converting internal SATA data signals to USB 2.0 or directly to external SATA and saves space with dual interface single port connectivity.

The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature, and impact protection while keeping your high RPM SATA hard drive safe from damages and drops.

The patented secure-fixing mechanism and anti-shock damper strips sustain HDD stability and the HDD spin down function ensures efficient operation. To automatically reduce power consumption, the hard disk inside the Enclosure spins down during sleep mode and automatically spins up when the host system is waken.

The easy-to-carry plus simple-to-install compacted Enclosure guarantees to have quick plug-n-play connection and immediate access for all your valuable data.

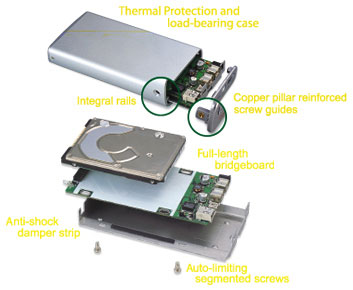

Patented secure-fixing mechanism


Link the SATAPro to the newest MAC using our FireWire 400-to-800 Adapter!

  • Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs

  • Supports Hi-Speed USB data transfer speed up to 480 Mbps

  • Supports eSATA data transfer speed up to 1500/3000 Mbps

  • Supports IEEE 1394 data transfer speed up to 400Mbps

  • Supports hot-plug and effortless drive swapping

  • Combines enclosure and FireWire repeater functionality

  • Sustains HDD stability, and keep HDD safe from damages and drops with patented secure-fixing mechanism and anti-shock damper strips

  • Protects housing with copper pillar reinforced screw guides

  • Provides efficient heat dissipation and maintains optimum HDD operation temperature with rugged aluminum housing

  • Prevents HDD damage due to over-tightening with auto-limiting segmented screws

  • Reduces power consumption with HDD spin up/down support

  • Protects housing with copper pillar reinforced screw guides

  • Extends connection flexibility to host with plug-n-play via High-Speed USB 2.0, eSATA and IEEE 1934a ports

    • Bus Interface eSATA /USB2.0 /1394a
    Data Speeds eSATA : up to 3000 Mbps
    USB 2.0 Port: up to 480Mbps
    IEEE 1394a (FireWire 400) port: up to 400 Mbps

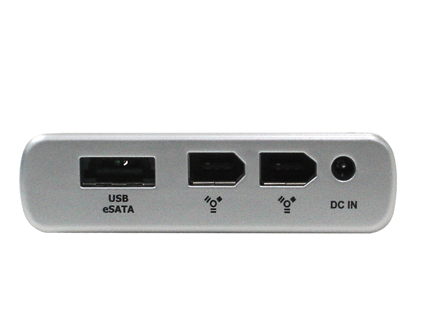

    Connector One DuoLink eSATA / USB type A 2-in-1 connector
    Two 6-Pin 1394a connectors
    HDD Support 2.5" HDD with SATA interface (support of SATA II and 1.0/1.0a)
    LED Power / Access
    Power Supply 5V/2A, 110~240V universal AC/DC adapter or 1394 bus power
    Dimension (L x W x H) 129.5 x 80 x 21 MM
    Weight (without HDD) 150 G
    Package Contents HDD Enclosure
    USB Cable
    FireWire 400 Cable
    eSATA Cable
    External Power Supply
    Fastening Screws
    Footpads
    Soft Case
    Quick Start Guide
    FireWire Adapter

    Manual/Guide

    File Name Sized Ver. Date Downloads
    SATAPro_25_UM.pdf 0.15 MB EN 2007/8/8
    SATAPro_25_UM_g.pdf 0.17 MB DE 2007/8/8
    SATAPro_25_UM_f.pdf 0.15 MB FR 2007/8/8
    TAS12T_QSG_TC.pdf 0.12 MB TC 2011/10/26

    DataSheet

    File Name Sized Ver. Date Downloads
    SATAPro_datasheet.pdf 0.28 MB EN 2009/2/2
    SATAPRO_25_DM_TC.pdf 0.23 MB TC 2012/9/21
